机床特点

1、本系列数控高速定梁立式机床是针对汽车、轴承、风电、机车、法兰、电机壳等行业的铸锻件盘类、筒类零件强力切削加工特殊设计，具有高刚性、多组合、易组线、配置多、规格全、高精度的诸多优势。配置了液压主轴和液压卡盘（卡具）、可针对不同加工件的不同要求，快捷方便的完成工件的装卡、准确定位。

2、数控系统根据用户需要，可选用进口或国产配置，CKD51Z/A 系列不带罩壳，CKD51Z/B 系列加围罩壳、排屑、冷却液回收装置。

3、横梁导轨面采用高频淬火，淬火硬度 HRC48-55 度。

4、诸多的产品优势可满足您的精选之作，具有高技机、电、液一体化产品。

The lathe features

1、This series CNC high speed fixed beam vertical lathe is designed for strong cutting and machining on casting and forging plates, cylinder parts in automotive, bearings, wind power, locomotive, flanges, motor housing etc industry, with many advantages such as high rigidity, multiple combination, easy to set wires, multiple configuration, complete specification, high precision etc. This lathe machine is equipped with hydraulic spindle and hydraulic chuck (fixture), which could be quickly and convenient to complete the workpiece clamping and accurate positioning according to the different requirement of different mechanical parts.

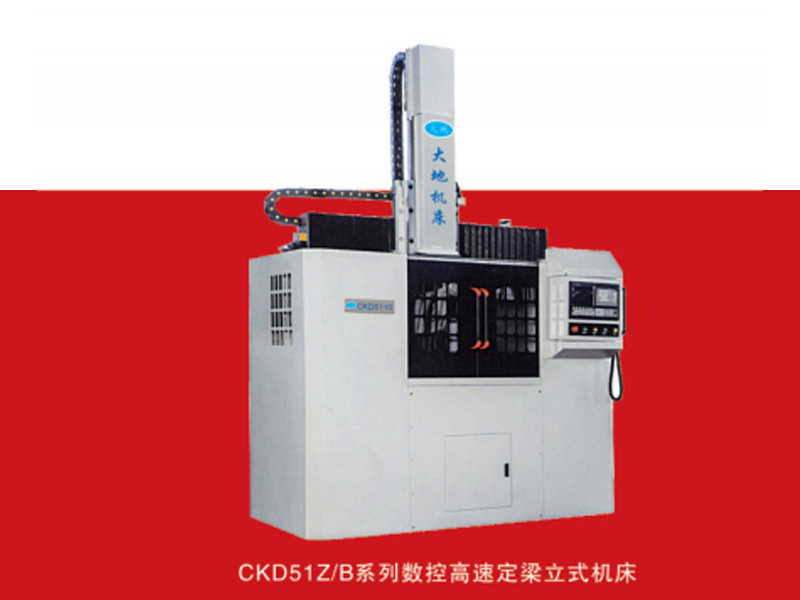

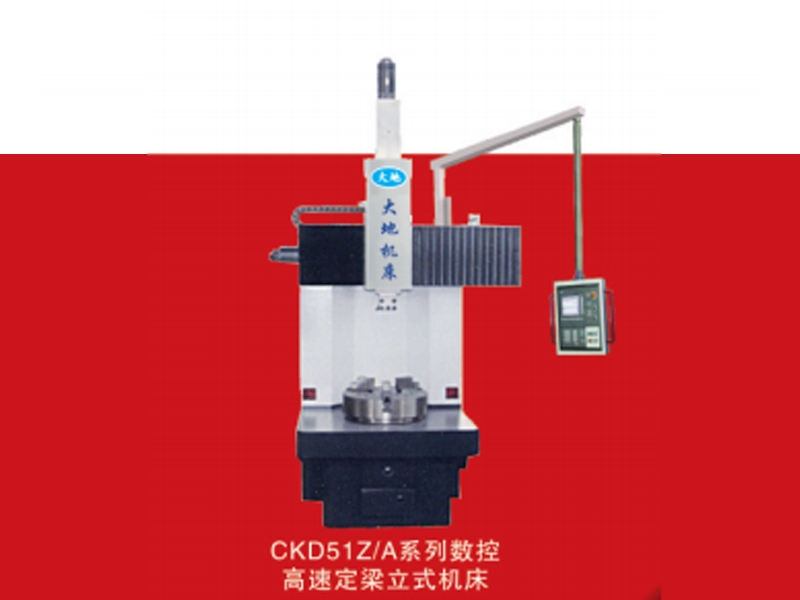

2、CNC system can select import or domestic according to user needs. CKD51Z/A series not have cover housing, CKD51Z/B series have cover housing, chip removal and cooling liquid recovery device.

3、Cross beam guideway all use high-frequency quenching, and the quenching hardness is HRC48-55.

4、This lathe machine is an integration of high-tech mechanical, electrical and hydraulic product with many advantages meeting your selection.
